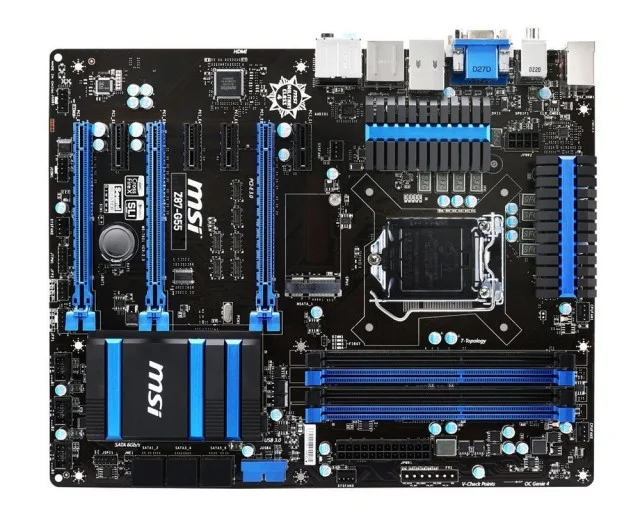

MSI Z87-G55 LGA1150 ATX DDR3 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI Z87-G55 is a ATX motherboard for LGA1150. It supports DDR3 memory up to 3000 MT/s (OC).
- Supports 4th Gen Intel Core/Pentium/Celeron processors for LGA 1150 socket
- Supports DDR3-3000(OC) Memory
- USB 3.0 + SATA 6Gb/s
- Military Class 4: Top Quality & Stability
- Military Class Essentials: Total Protection for Military Class Motherboards
- OC Genie 4: Overclock in 1 Second
- Click BIOS 4: Easily Fine-tune Your System
- 4K UHD Support: Ultra-high Definition Visual Experience
- 3 Display Outputs: HDMI/DVI/D-Sub Support
- PCI Express Gen 3: World’s 1st PCI Express Gen 3 Motherboard Brand
- Multi-GPU: NVIDIA SLI & AMD CrossFire Support
- Sound Blaster Cinema: Realistic Surround Sound Experience
- Command Center: Control & Customize Your PC Settings
- Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds
- Super RAID: Easily Setup & Configure Intel Technologies
- Overclocking capabilities
- Average audio chip
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | Z87-G55 |
| Launch Date | December 2013 |
| CPU Socket | LGA1150 |
| Chipset Model | Intel Z87 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 / DDR4-1866 / DDR4-2000 / DDR4-2133 / DDR4-2200 / DDR4-2400 / DDR4-2600 / DDR4-2666 / DDR4-2800 / DDR4-3000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 4 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 4 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z87-G55 |
| SKU Code | Z87-G55 |
| GTIN / EAN | 824142000090 |
