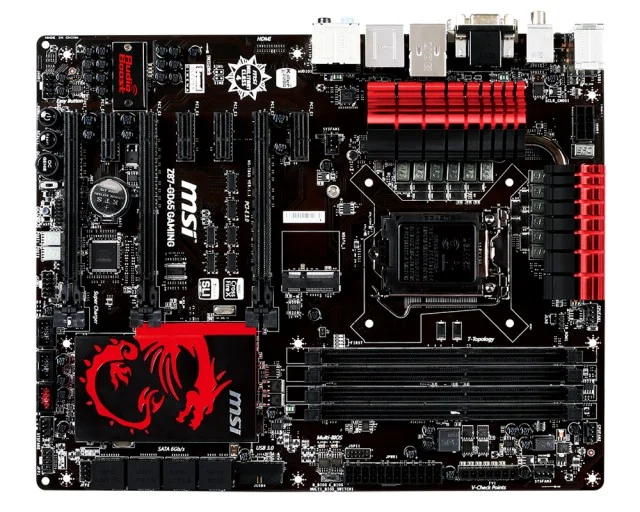

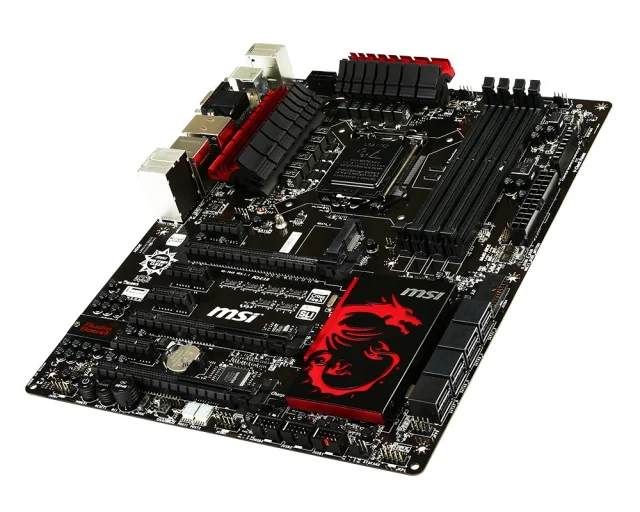

MSI Z87-GD65 LGA1150 ATX DDR3 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI Z87-GD65 is a ATX motherboard for LGA1150. It supports DDR3 memory up to 3000 MT/s (OC).
- The MSI gaming motherboard Z87-GD65 is based on the new Intel’s Z87 Chipset and is compatible with Intel LGA-1150 Haswell processor. Intel’s Z87 Chipset offers native support for USB 3.0, SATA 6GB/s and support for Quad-Read speed SPI Devices. The platform would consume lower TDP, Idle and S3 power inside a smaller package (22x23mm FCBGA). Manageability and security is significantly enhanced with next gen Intel vPro and Intel identity-protection technology. Improvements to Intel’s already implemented RST (Rapid Storage Technology and optimization’s to the SSD performance have also been carried out.
- Killer E2205 Network controller
- Very good onboard audio
- High overclocking potential
- None
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | Z87-GD65 GAMING |
| Launch Date | June 2013 |
| CPU Socket | LGA1150 |
| Chipset Model | Intel Z87 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 / DDR4-1866 / DDR4-2133 / DDR4-2200 / DDR4-2600 / DDR4-2800 / DDR4-3000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 4 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 4 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z87-GD65 GAMING |
| SKU Code | Z87-GD65 GAMING |
| GTIN / EAN | 816909106961 |
