MSI Z97 GUARD-PRO LGA1150 ATX DDR3 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

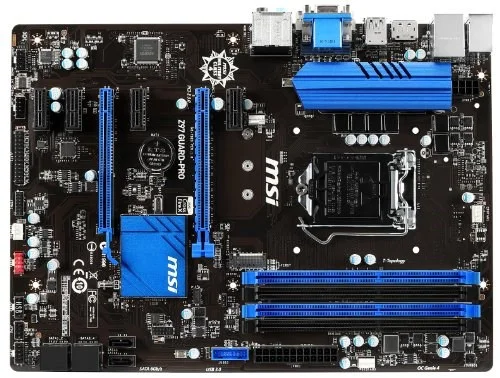

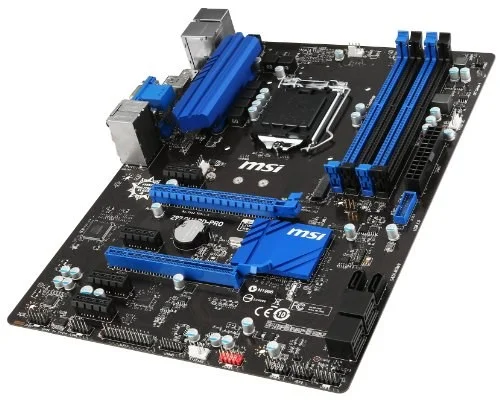

The MSI Z97 GUARD-PRO is a ATX motherboard for LGA1150. It supports DDR3 memory up to 3300 MT/s (OC).
- Supports 4th and 5th Gen Intel Core/Pentium/Celeron processors for LGA 1150 socket
- Supports DDR3-3300(OC) Memory
- M.2 + USB 3.0 + SATA 6Gb/s
- Guard-Pro: Improved Protection and Power Efficiency
- Military Class 4: Top Quality & Stability
- OC Genie 4: Overclock in 1 Second
- Click BIOS 4: Easily Fine-tune Your System
- 4K UHD Support: Ultra-high Definition Visual Experience
- Multi-GPU: AMD CrossFire Support
- Command Center: Control & Customize Your PC Settings
- Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds
- Smart Utilities: Easily Setup & Configure Intel Technologies
- Good overclocking for a low cost motherboard
- M.2 Support
- No HDMI output
- Mediocre onboard audio
- Realtek NIC
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | Z97 GUARD-PRO |
| Launch Date | May 2014 |
| CPU Socket | LGA1150 |
| Chipset Model | Intel Z97 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 / DDR4-1866 / DDR4-2000 / DDR4-2133 / DDR4-2200 / DDR4-2400 / DDR4-2600 / DDR4-2800 / DDR4-3000 / DDR4-3100 / DDR4-3200 / DDR4-3300 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 4 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 4 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z97 GUARD-PRO |
| SKU Code | Z97 GUARD-PRO |
| GTIN / EAN | 824142023372 |
