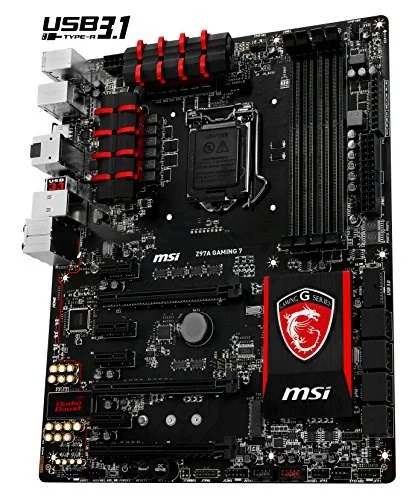

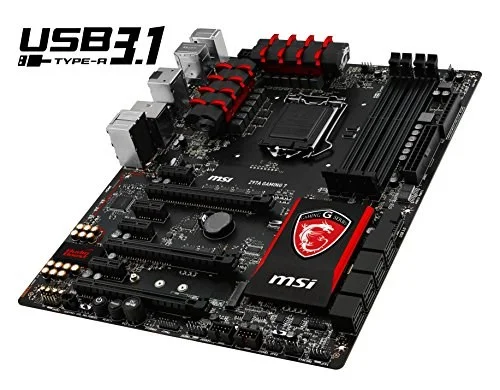

MSI Z97A GAMING 7 LGA1150 ATX DDR3 32 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI Z97A GAMING 7 is a ATX motherboard for LGA1150. It supports DDR3 memory up to 3300 MT/s (OC).
- LGA1150
- Chipset: Intel Z97 Express
- Memory: 4x DDR3-3300(OC)/ 3200/ 3100/ 3000/ 2800/ 2666/ 2600/ 2400/ 2200/ 2133/ 2000/ 1866/ 1600/ 1333/ 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
- Slots: 3x PCI-Express 3.0 x16 Slots, 4x PCI-Express 2.0 x1 Slots
- Multi-Graphics: Supports AMD 3-Way CrossFireX and NVIDIA 2-Way SLI Technology
- Ports: 2x USB 3.1 Ports, 8x USB 3.0 Ports (6 rear, 2 via header), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x PS/2 Keyboard/Mouse Combo Port, 1x DisplayPort, 2x HDMI Ports, 1x Optical S/PDIF Out, 1x RJ45 LAN Port, Audio I/O Jacks
- Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | Z97A GAMING 7 |
| Launch Date | |
| CPU Socket | LGA1150 |
| Chipset Model | Intel Z97 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 / DDR4-1866 / DDR4-2000 / DDR4-2133 / DDR4-2200 / DDR4-2400 / DDR4-2600 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3100 / DDR4-3200 / DDR4-3300 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 4 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 4 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z97A GAMING 7 |
| SKU Code | Z97A GAMING 7 |
| GTIN / EAN | 824142114636 |
