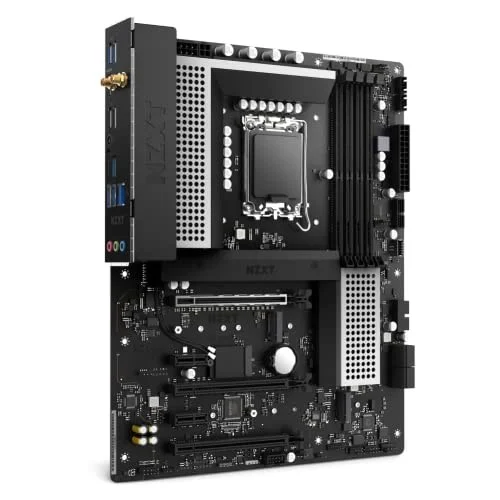

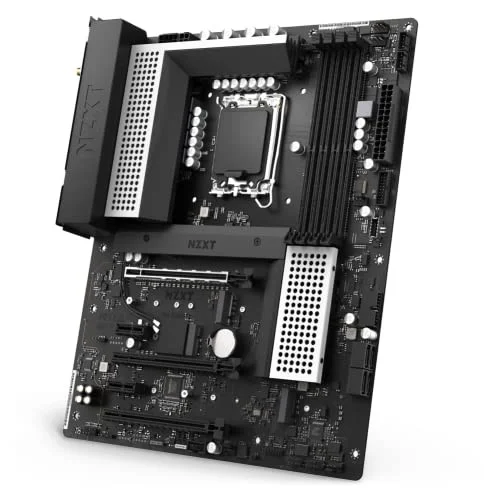

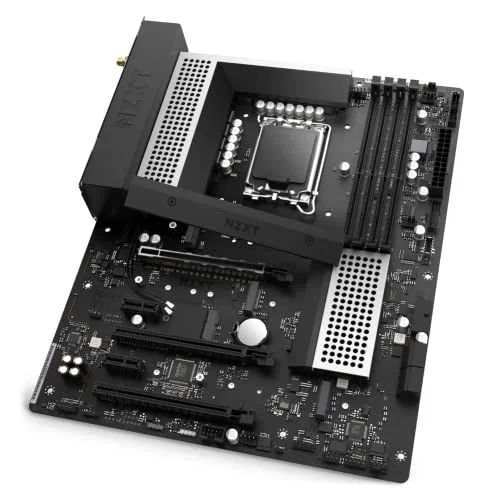

NZXT N5 Z690 White LGA1700 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The NZXT N5 Z690 White is a ATX motherboard for LGA1700. It supports DDR4 memory up to 5133 MT/s (OC).
- GAMING MOTHERBOARD: Designed around Intel’s Z690 chipset, the N5 Z690 lays the groundwork for a stunning gaming PC build. Build with the latest components, with support for any accessory.
- MINIMALIST DESIGN: The N5 has a clean PCB design with black or white color options. An integrated heat spreader is included for the top-most NVMe drive

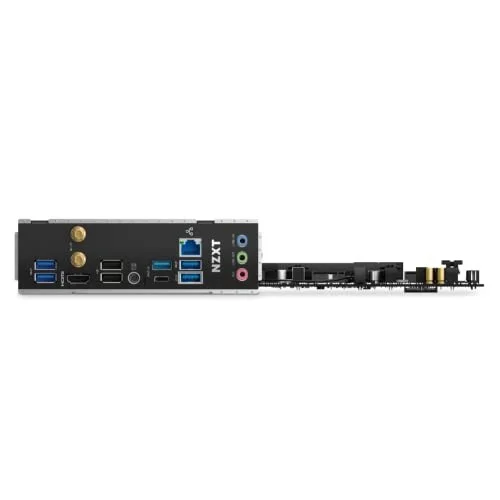

- BUILDING MADE EASIER: The N5 Z690 includes Wi-Fi 6E connectivity, front panel USB-C and streamlines installation with an integrated rear I/O shield and optimally placed headers for an easier setup process.
- NEXT GEN CHIPSET: Take on computing challenges with the Intel Z690 Express Chipset.
- SMART CONTROLS: The N5 Z690 allows intuitive control of four RGB lighting channels and six fan channels through CAM, and supports lighting accessories from all manufacturers.
Specifications
| Manufacturer | NZXT |
|---|---|
| Model Number | N5-Z69XT-W1 |
| Launch Date | June 2022 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z690 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5000 / DDR4-5066 / DDR4-5133 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | N5-Z69XT-W1 |
| SKU Code | N5-Z69XT-W1 |
| GTIN / EAN | 815671016027 |
