NZXT N7 B550 White AM4 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

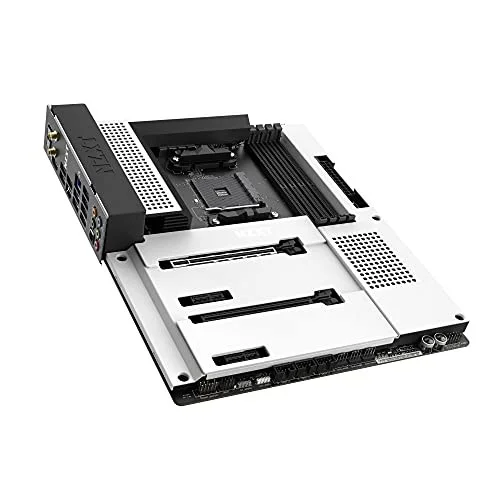

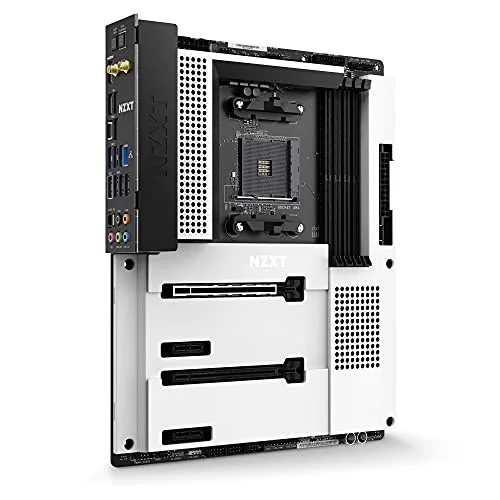

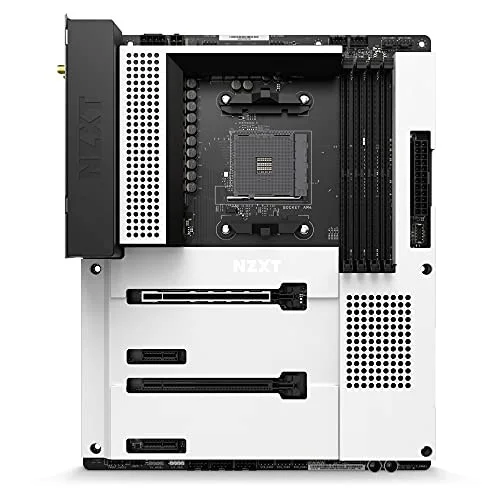

The NZXT N7 B550 White is a ATX motherboard for AM4. It supports DDR4 memory up to 4733 MT/s (OC).
- SMART CONTORLS: The N7 B550 includes key features from our RGB and Fan Controller, allowing intuitive control of four RGB lighting channels and seven fan channels through NZXT CAM.
- STUNNING CRAFTSMANSHIP: The metal cover is available in white or black for a seamless look that blends into the background of any NZXT H Series case for a clean aesthetic.
- BUILD MADE EASIER: The N7’s layout streamlines installation with an integrated rear I/O shield and optimally placed headers for easier setup.

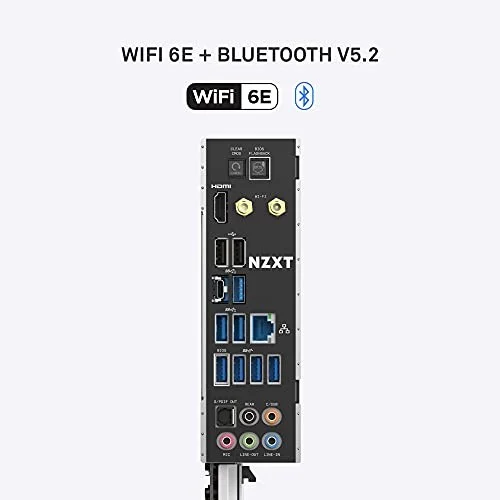

- FEATURES: The N7 B550 includes a front panel USB 3.2 Gen 2 Type-C, WiFi 6 connectivity, and utilizes all PCI express lanes available from the CPU and chipset.
- COMPATIBILITY: Supports AMD Socket AM4 Ryzen Processors (3000, 4000, and 5000 Series Processors
Specifications
| Manufacturer | NZXT |
|---|---|
| Model Number | N7-B55XT-W1 |
| Launch Date | March 2021 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B550 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4333 / DDR4-4400 / DDR4-4533 / DDR4-4600 / DDR4-4666 / DDR4-4733 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | N7-B55XT-W1 |
| SKU Code | N7-B55XT-W1 |
| GTIN / EAN | 815671015235 |
