NZXT N7 Z590 N7-Z59XT-W1 LGA1200 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

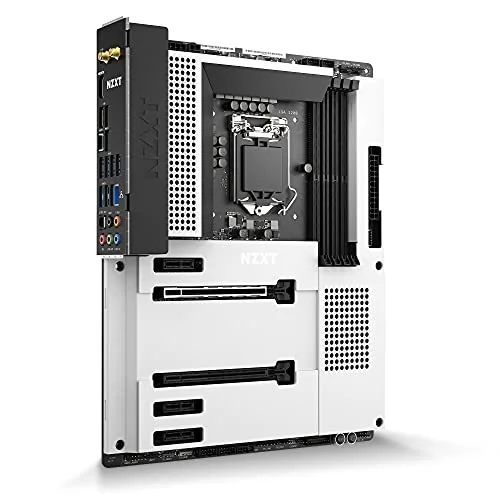

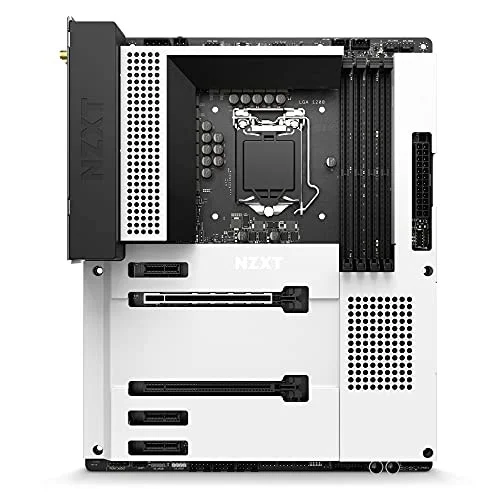

The NZXT N7 Z590 N7-Z59XT-W1 is a ATX motherboard for LGA1200. It supports DDR4 memory up to 4600 MT/s (OC).
- SMART CONTROLS: The N7 Z590 includes key features from our RGB and Fan Controller, allowing intuitive control of four RGB lighting channels and seven fan channels through CAM.
- STUNNING CRAFTSMANSHIP: The metal cover is available in white or black for a seamless look that blends into the background of any NZXT H Series case for a clean aesthetic.

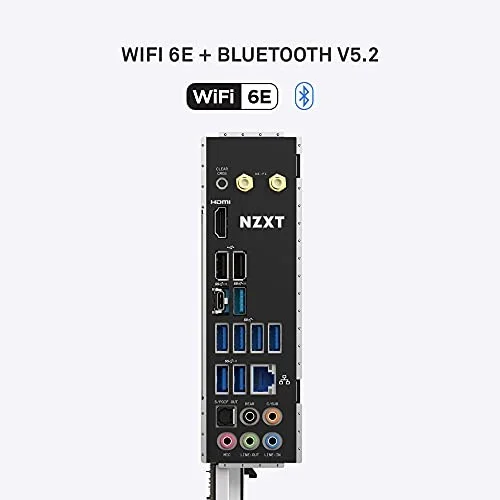

- BUILDING MADE EASIER: The N7 Z590 includes WiFi 6E connectivity and utilizes all PCI express lanes available from the CPU and chipset.

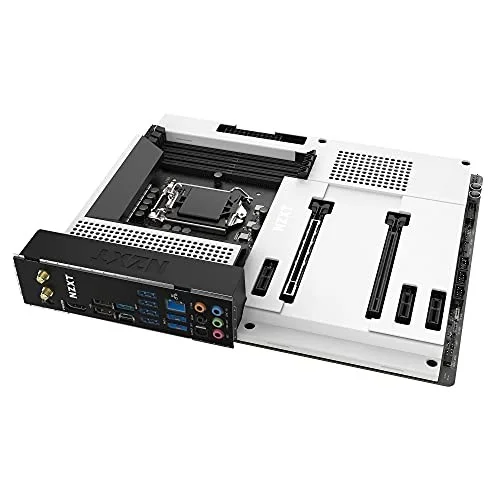

- INTEGRATED REAR I/O SHIELD: The N7’s layout streamlines installation with an integrated rear I/O shield and optimally placed headers for easier setup.
- COMPATIBILITY: For Intel 11th Generation Core i9/ Core i7/ Core i5/ Core i3 Processors
Specifications
| Manufacturer | NZXT |
|---|---|
| Model Number | N7-Z59XT-W1 |
| Launch Date | June 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z590 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4400 / DDR4-4600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | N7-Z59XT-W1 |
| SKU Code | N7-Z59XT-W1 |
| GTIN / EAN | 815671015211 |
