NZXT N9 X870E AM5 ATX DDR5 192 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The NZXT N9 X870E is a ATX motherboard for AM5. It supports DDR5 memory up to 8200 MT/s (OC).
- AMD AM5 SOCKET - Ready for AMD Ryzen 9000, 8000, and 7000 series desktop processors.

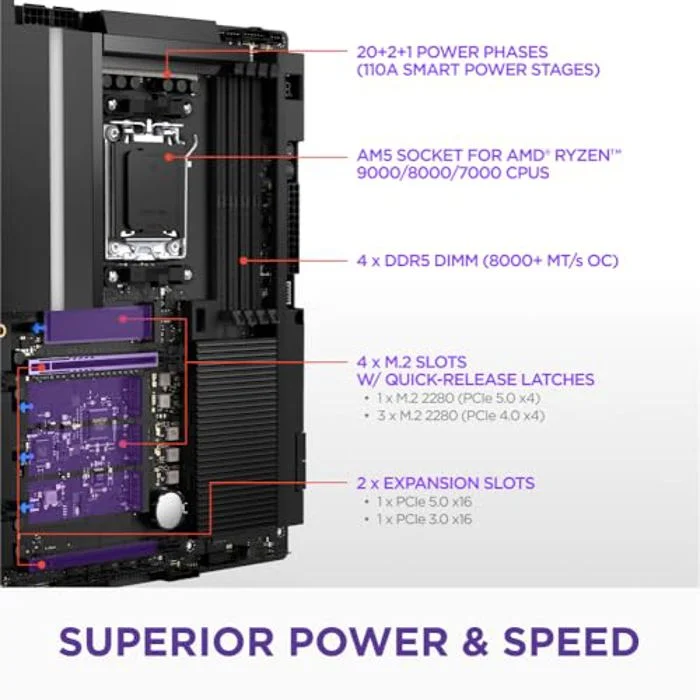

- SUPERIOR POWER - 20+2+1 power phase design with 110A Smart Power Stages and an 8-layer, 2-ounce copper PCB ensures stable, overclocking-ready power delivery.

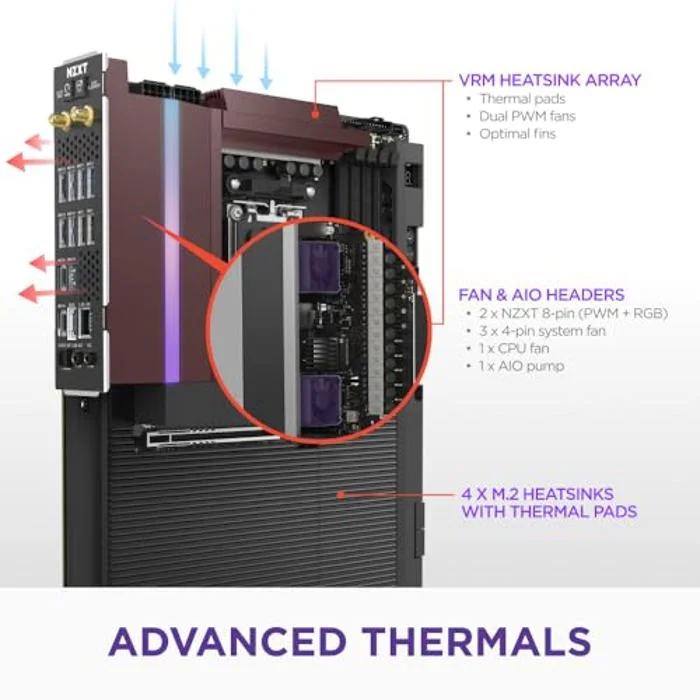

- ADVANCED COOLING - VRM heatsink array with thermal pads, dual PWM fans, and four dedicated M.2 heatsinks.
- PCIe 5.0 EXPANSION - One PCIe 5.0 x16 slot for next-gen GPUs and one PCIe 3.0 x16 slot for additional high-speed expansion cards.
- DDR5 MEMORY - Four dual-channel DIMM slots support DDR5 RAM speeds of 8000+ MT/s, delivering faster multitasking and improved system responsiveness.
- HIGH-SPEED STORAGE - Four M.2 slots, including one PCIe 5.0 and three PCIe 4.0, deliver ultra-fast storage speeds and load times-all with quick-release latches.
- NEXT-GEN CONNECTIVITY - USB 4 (40 Gbps), Wi-Fi 7, and 5GbE deliver blazing-fast data transfers and ultra-low latency networking.

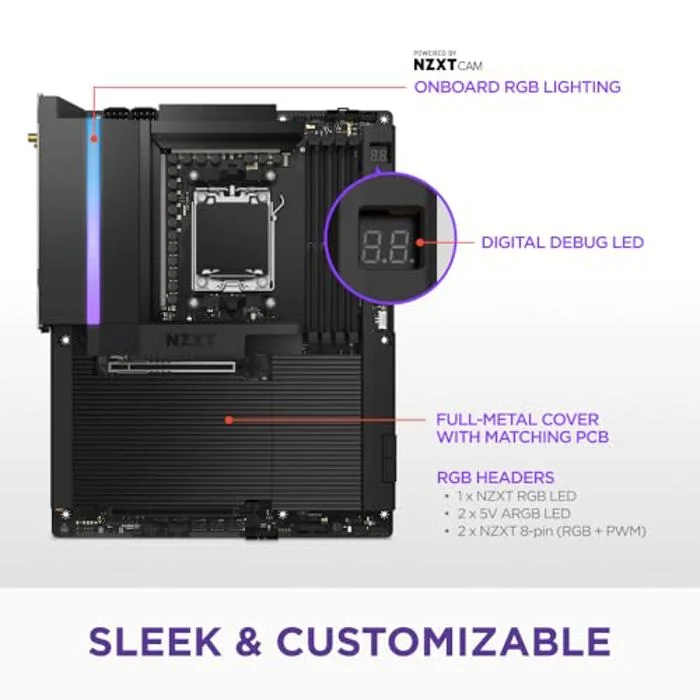

- SLEEK & STYLISH - A premium full-metal cover conceals the PCB for a clean, modern aesthetic, enhanced by onboard customizable RGB lighting.
Specifications
| Manufacturer | NZXT |
|---|---|
| Model Number | N9-X87XT-B1 |
| Launch Date | March 2025 |
| CPU Socket | AM5 |
| Chipset Model | Intel X870E |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7600 / DDR5-7800 / DDR5-8000 / DDR5-8200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 5 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2280 - M Key, 2280 - M Key, 2280 - M Key, 2230 - E Key |
| SATA III Ports | 0 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 7 (802.11be) |

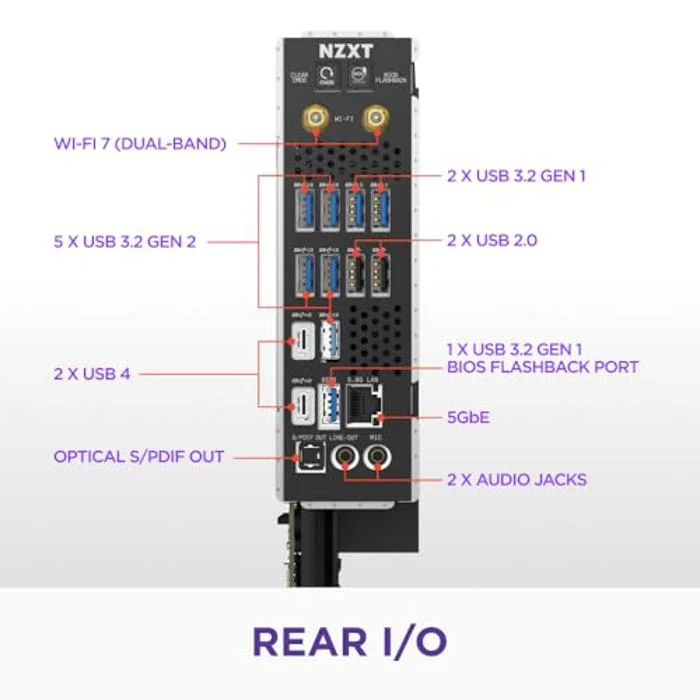

| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | N9-X87XT-B1 |
| SKU Code | N9-X87XT-B1 |
| GTIN / EAN | 810074847308 |
